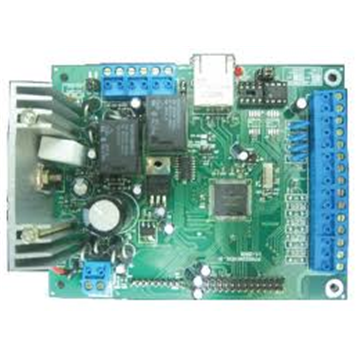

Model:
CTRL-1DR-TCP/IP
Giá:
Call
Xuất xứ:
Malaysia
Trạng thái kho:
Số lượng :
0
Bảo hành:
12
tháng
Specification
• MCU : Motorola/ Freescale 16-bit CPU Running at 25Mhz
• Memory : 64KB FlashROM, 8KB RAM, 32KB EEPROM
• Watchdog : 1 Internal
• Operating Temperature: 0C to 60C
• Humidity Range: 0-95% non-condensing
• Protocol Support: TCP, IP, UDP, DHCP, ICMP, and ARP
• Network Interface : TCP/IP, LAN, WAN
• Communication Interface : Onboard Ethernet Port (TCP/IP)10/100BaseT
• Relay Output : 10A (1 Form C- can configured to NC or NO)
• Power Supply : 14VAC input, 13.8V output, 1.5 ~ 3.0A output
• Current Consumption : 200-300mA (without the EM Lock)/1.5A max
• Dimensions : 50mm(H) x 152mm(W) x 127mm(D)
• Configurable : 1-door or 2-door (with expansion board) and alarm monitoring
• Supervised Input :2 Supervised input (Onboard)
• Digital Input : 3 Input
• Output : 2 Relay Output (Onboard), 3 Open-Collector Power Output (100mA-Onboard)
• Large Memory : Stores up to 100,000 user cards and 50,000 transactions
• Power Fault Detection: Loss of AC Power and battery voltage low
• PIN only, Card only, and Card Plus PIN Operation Modes
• Lock-out of a card when its PIN is wrongly entered repeatedly
• Stored Event :2,000 upgradeable to 50,000
